One inspection for every wheel variant.
How DatVision AI brings dimensional measurement, part identification and component counts together at the end of the wheel production line.
See what matched and what needs review.

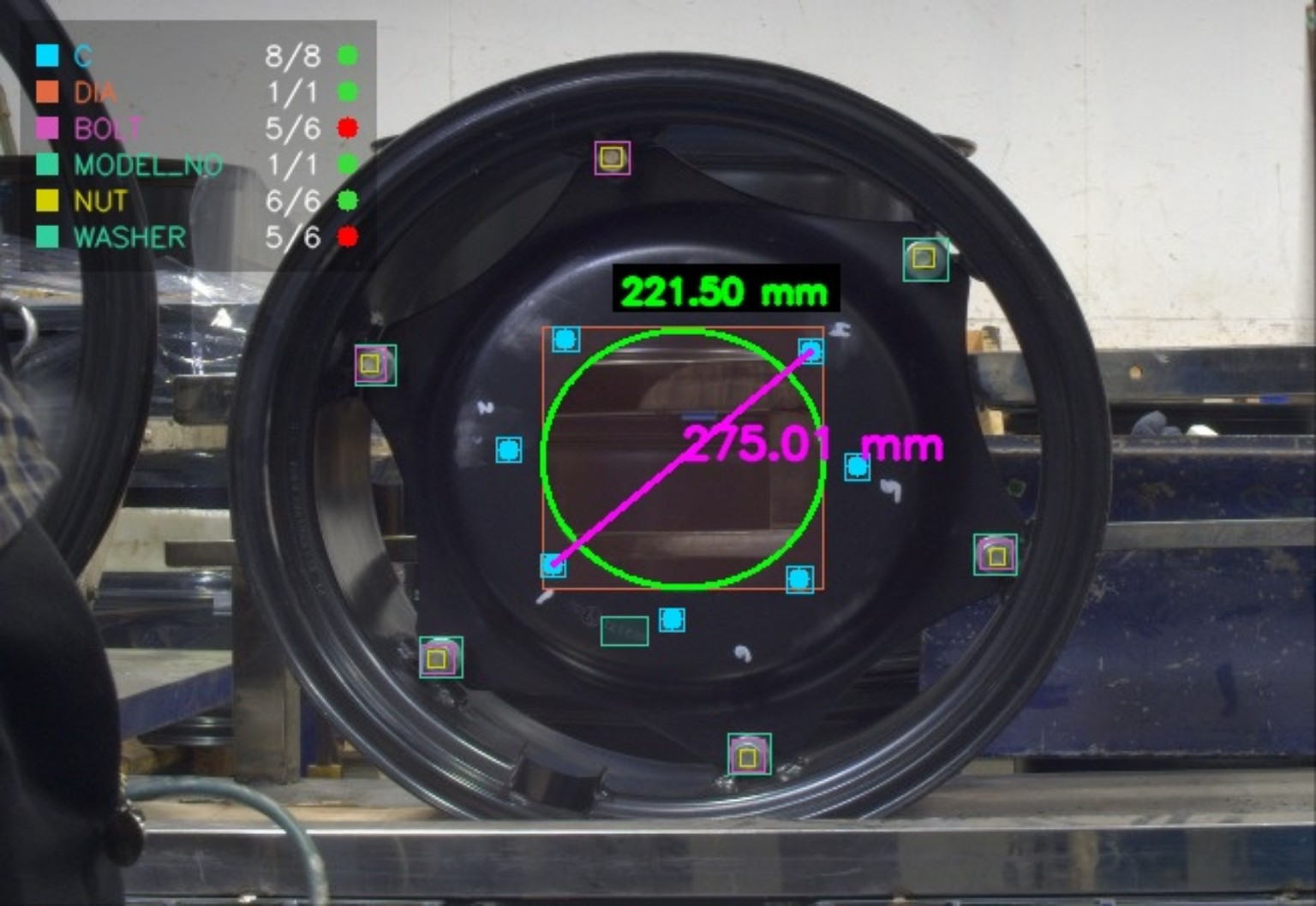

This inspection view overlays detected component locations on the wheel and displays measurements of 221.50 mm and 275.01 mm. Bolt and washer counts each show 5/6 in red, directing the quality team to those checks.
The image does not display approved dimensional tolerances, so the two readings alone do not establish whether the dimensions pass or fail.
The right check for the right wheel.
Every wheel reaching the end of the line must be checked against the requirements of its part number and model variant. The inspection needs to confirm identity, verify required parts in the right quantities and check specified dimensions in millimetres.
On a mixed-model line, expected counts and dimensional limits can change between variants. Quality teams need a clear result that tells them which check requires attention before a wheel moves forward.
One visual workflow, configured for each model.
Wheels India uses DatVision AI at end of line to bring identification, measurement and counting into one inspection view. A model-specific recipe connects the wheel part number and variant to expected features, component quantities and approved dimensional limits.
Identify the wheel
Check the part number and model variant against the selected inspection recipe.
Verify the components
Compare detected bolts, nuts, washers and other configured features with the quantities expected for that model.
Review the dimensions
Measure configured features in millimetres and assess them against the approved limits for the variant.
A more consistent release check across wheel variants.
With identification, measurement and component counts in one view, Wheels India's quality team can assess each wheel against the requirements of its own part number. The recipe makes expected checks explicit, while the visual result points inspectors to the particular feature or count that needs review before release.
